Gantry Crane (Portal Crane)

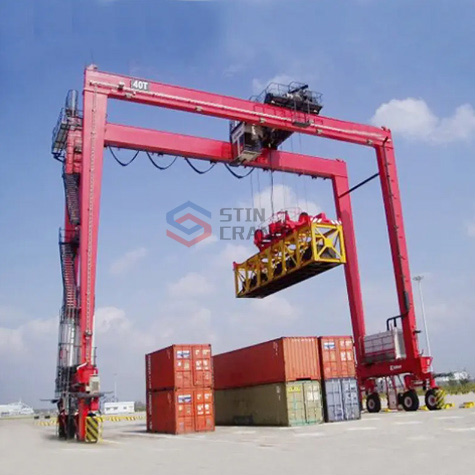

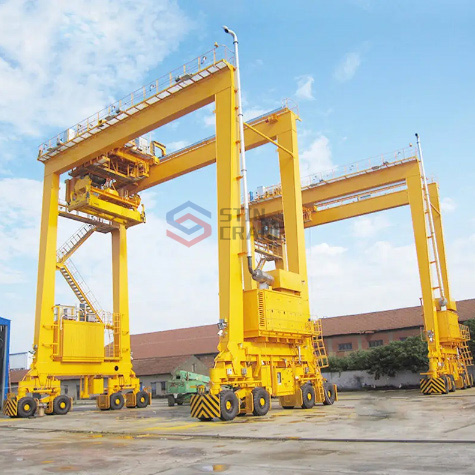

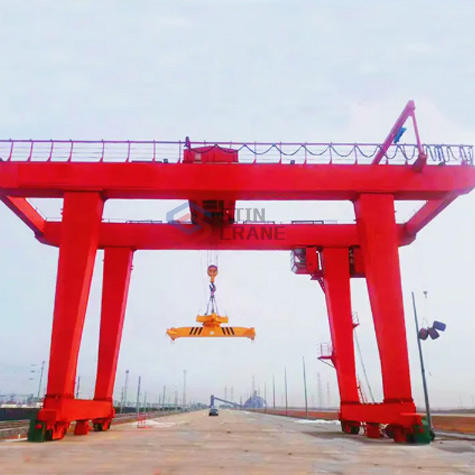

Hot Sale Motor Driven 20ft & 40ft,60ton Container Portable Gantry Crane For Shipping Containers

Detailed description

Applicable Industries :Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Printing Shops, Construction works , Energy & Mining, Other

Parameter(customizable)
ItemTechnical parameter
Rated load40T
Max. lifting height2360mm
Max. lifting speed0.04m/s
Self weight9.5T
Model of generator setKM385QB KM485QB
Generator power/Rated rotate speed26/3300kw/r/min 35/3300kw/r/min
Max. torque/Rotate speed85/2110~2310[Nm/r min] 115/2110~2310[Nm/r min]
Max. running speed4km/h
Lifting hydraulic cylinder dia.180mm
Lift system pressure16Mpa
Steering hydraulic cylinder dia.75mm
steering system pressure15Mpa
Torque of hydraulic motor949Nm
Hydraulic motor speed range6~400r/min
Drive wheel dia.450mm
Min. ground clearance80mm
Outline dimensionLength6000mm
Width5800mm
Height7500mm

Brand: 河南矿山 和 奥力通 etc

For any customised gantry crane, please feel free to ask us any question related.
