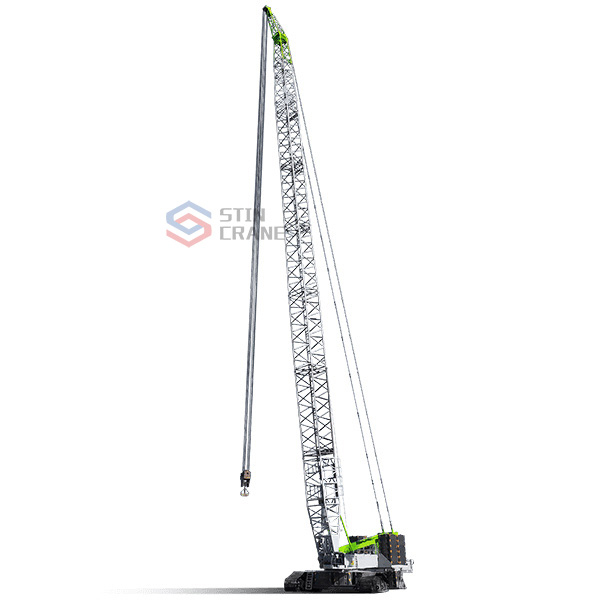

The ZCC13000 has been designed for a better and higher wind turbine installation performance.

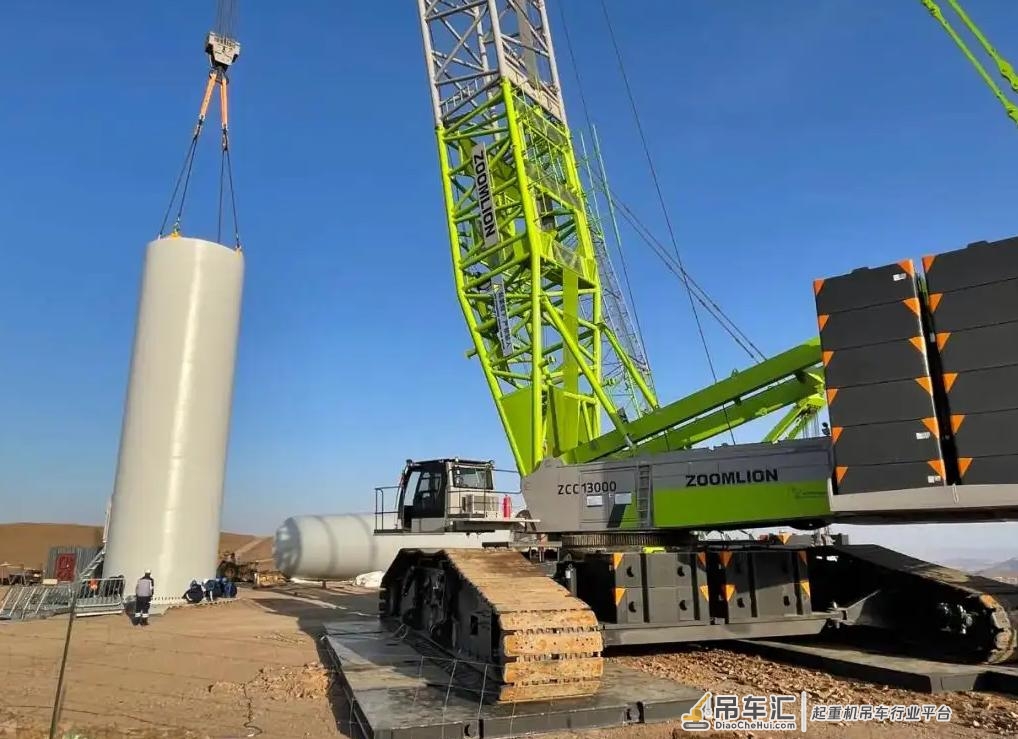

The wind turbine configuration is already able to reach a height of 108 m + 7 m, with a rated lifting lifting weight is 220 tonnes at 17 metres. This easliy cover wind turbine installation works up to 100 m in height.

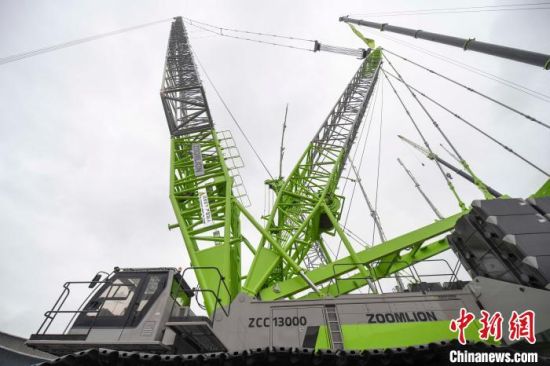

The new dual-boom with superlift and 171m + 7m is able to lift 170 tonnes at 24m radius, fulfilling the requirements of hoisting wind turbine up to 5MW with a lifting height of up to 160m.
The pinning system allows the crane to quickly disconnect at the slewing table for easier lower carriage transportation. It will weighs 93.5 tonnes, meeting the 3.2m width requirement in domestic market.
The crane has a complete boom configuration to meet different working criteria, and a wide range of applications can be used for heavy lift hoisting operations including petrochemicals and wind power.
| Item | Parameter | |
| Max. lifting moment t×m | 13000 | |
| S-1 | Max. lifting capacity × radius t×m | 677×8 |
| Length of main boom m | 42～84 | |
| SL-1 | Max. lifting capacity × radius t×m | 450×11 |
| Length of main boom m | 60～114 | |
| SLHS-1 | Max. lifting capacity × radius t×m | 245×18 |
| Length of jib for wind turbine m | 9 | |
| Length of main boom m | 90～117 | |
| SDB-1 | Max. lifting capacity × radius t×m | 900×12 |
| Length of main boom m | 42～144 | |
| SLDB-1 | Max. lifting capacity × radius t×m | 450×26 |
| Length of main boom m | 51～174 | |
| SLHSDB-1 | Max. lifting capacity × radius t×m | 245×24 |
| Length of jib for wind turbine m | 9 | |
| Length of main boom m | 96～174 | |
This product is made by Zoomlion, if you are looking for similar used cranes from other brands like Sany, XCMG, Liu Gong, ZPMC, Liebherr, Konecranes, Demag, Terex, Tanano, Manitowoc, Cargotec, Palfinger, Sunward etc, please feel free to ask us any question related.
