Bridge Crane
Single Girder & Double Girder Electric Overhead Travelling Bridge Crane 2 ton 5 ton 10 ton 16 ton 32 ton 50 ton

Detailed description

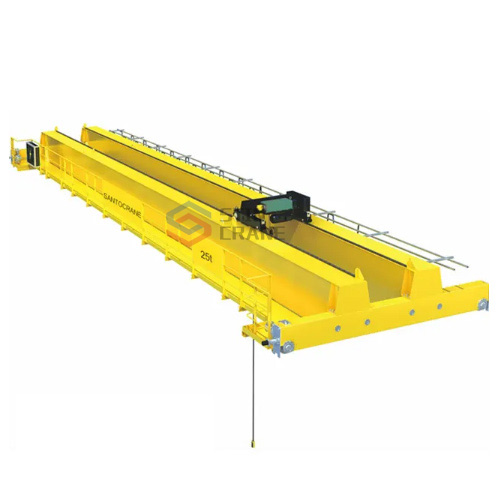

Overhead cranes sometimes also called bridge cranes and eot crane, which are cranes with a hoist or winch traveling along the bridge between parallel runways. Include two types: Double Girder Overhead Crane, Single Girder Overhead Crane. They are designed to meet the medium to heavy industrial lifting requirements, covering all parts of the manufacturing process. Compared with single girder overhead crane, the double girder overhead crane can support bigger lift capacity, and more suitable for heavy work duty.

We manufacture all models Overhead Cranes, such as:

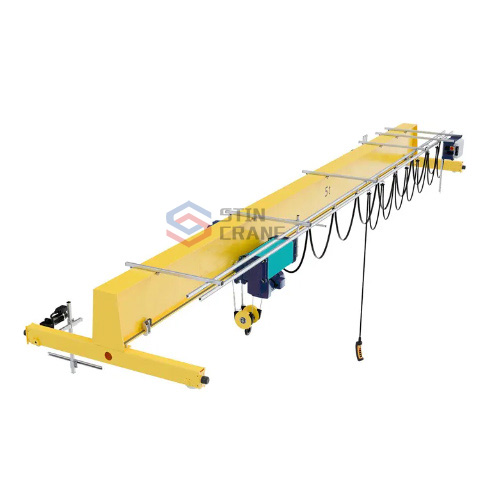

1- LD Model Single Girder EOT Cranes, Lifting capacity from 0.5t -32tons.

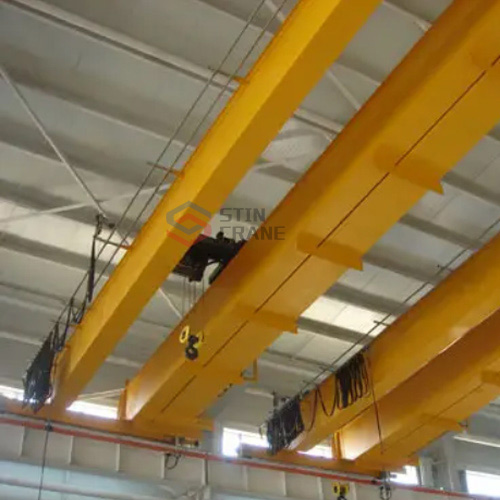

2- LH Model Hoist type Double Girder EOT Cranes, Lifting capacity from 2t- 50/10tons, Work duty: M3-M4.

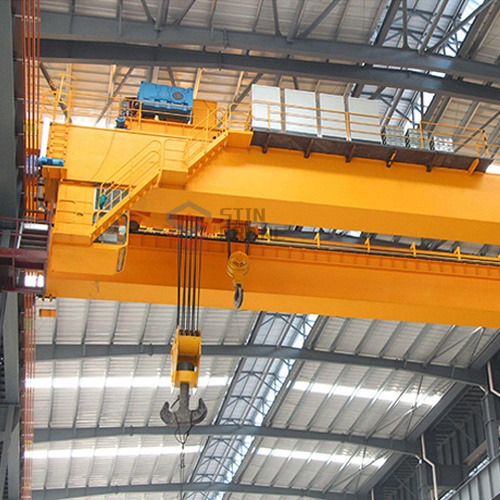

3- QD Model Winch type Double girder EOT Cranes, Lifting capacity from 5t -550/200/50tons, Work duty: M5- M7.

4- LB Model Explosion proof type Single girder EOT Cranes, Lifting capacity from 0.5t- 20tons.

5- QZ Model Grab type EOT Cranes, Lifting capacity from: 5t- 20tons.

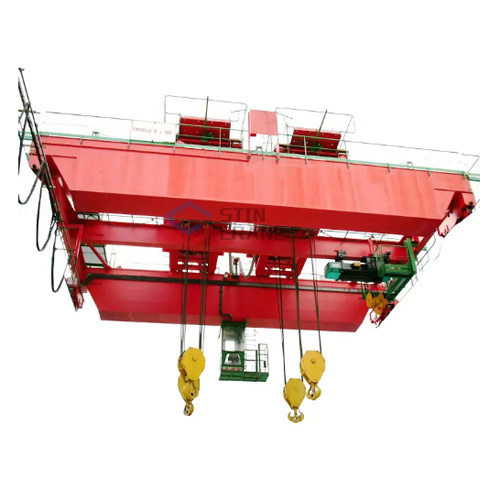

6- YZ Model Casting type Double girder EOT Cranes, Lifting capacity from 10t -125/50tons.

7- QB Model Explosion proof type double girder EOT Cranes, Lifting capacity from 5- 75/20tons.

8- QL/QC/YC Slewing lifting beams type EOT Cranes, Lifting capacity: 5+5t -20+20tons.

9- LX model suspension type single girder EOT Cranes, Lifting capacity: 1t -10tons.

10- All kinds Manual type EOT Cranes,



Please kindly tell us your detailed requirement and the working conditions, we can help you to choose which model is much more suitable to your requirement.


 * Capacity: 1-550ton

 * Span length: 4-31.5m

 * Lifting height:customized according to clients' site conditions

 * Work duty: A3, A5, A6, A7, A8

 * Raged voltage: 220V~690V, 50-60Hz, 3ph AC

 * Protection class: IP54 IP55

 * Crane control mode: Pendant control / Remote control / Cabin Control


Factors to consider when selecting your crane:

   a. Lifting capacity.

   b. Lifting height. (hook center to ground)

   c. Power supply:  (_V_Hz 3Phase)

   d. Span (rail center to rail center)

   e. Crane Duty Class (ISO A3 to A8, or how many hours the crane works per day? )

   f. Working condition: which material to lift? temperature?

   g. Would be better if you have drawings of your plant.


Lifting Capacity
ton
1t 2t 3t 5t 10t
16t 20t
Span
m
7.5~22.5m
7.5~31.5
Speed
Lifting
MD1 hoist
m/min
8/0.8 (7/0.7)
3.5/0.35
CD1 hoist
8 (7)
3.5
Cross Traveling
20
20
Long Traveling
20/30
20/30
Wheel Diameter
Ø270
Ø370
Width of Rail
37~70mm
37~70mm
Operation Model
remote/pendant
remote/pendant
Working Duty
A3
Power Supply
According to your demands
According to your demands

Brand: 河南矿山 和 奥力通 etc

For any customised gantry crane, please feel free to ask us any question related.
