30 Ton Double Girder Overhead Bridge Crane

Detailed description

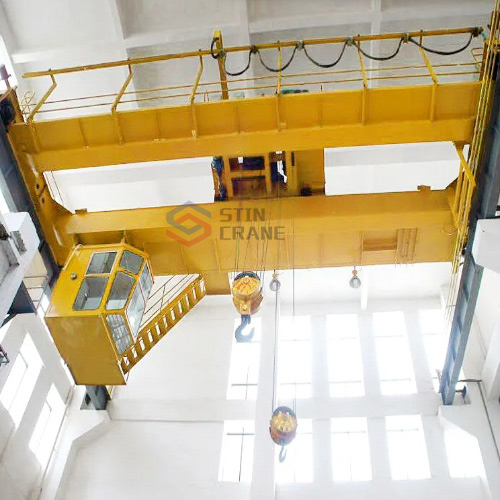

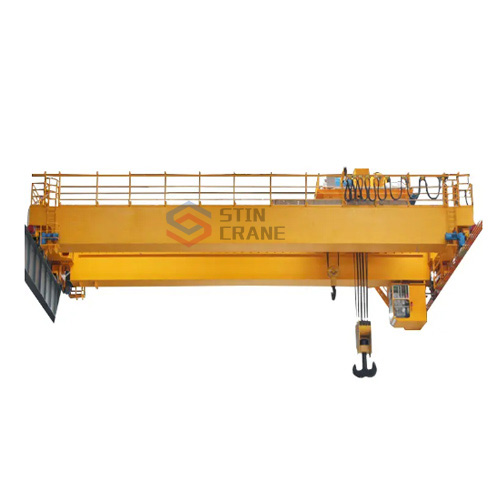

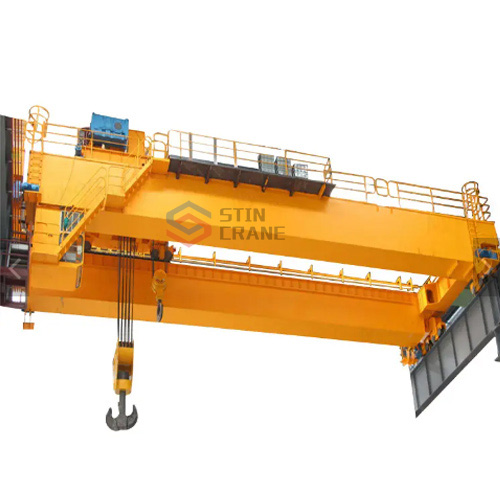

Electric overhead bridge crane for walking on a roof is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.


 It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism. The main hook is used to lift heavy objects while the  auxiliary used to lift light objects,the auxiliary can also be used for collaborative main hook tilting or tipping the material. However, don’t use the two hooks to lift at the same time when goods weight is over the auxiliary rated capacity.


Advantages of double beam bridge crane:

1.Reasonable structure

2.Favorable performance

3.Smooth starting and stopping

4.Safe and reliable traveling

5.Low noise, commodious cabin and good view

6.Convenient maintenance, excellent exchangeability for parts and components

7.Energy saving,reduce energy consumption

8.Using transducer for travelling or traversing crane to realize step speed or stepless speed change

9.Primer and finishing paint


Lifting Capacity

T

5

10

16/3.2

20/5

32/5

50/10

Span

m

10.5-31.5

Speed

Main Hook Lifting

A5

m/min

11.3

8.5

7.9

7.2

7.5

5.9

A6

15.6

13.3

13

12.3

9.5

7.8

Aux. Hook Lifting





16.7

19.5

19.5

10.4

Traveling of Trolley



37.2

43.8

44.6

44.6

42.4

38.5

Traveling of Crab

A5

89.8/91.8

90.7/91.9

/84.7

84.7/87.6

84.7/87.6

87/74.2

74.6

A6

92.7/93.7

115.6/116

/112.5

112.5/101.4

112.5/101.4

101.4/101.8

75/76.6

Operational Model

Cabin; remote control; ground handle

Working Duty

 A5,A6

Power Supply

Three-phase A.C. 380V, 50Hz or customized


Brand: 河南矿山 和 奥力通 etc

For any customised gantry crane, please feel free to ask us any question related.
