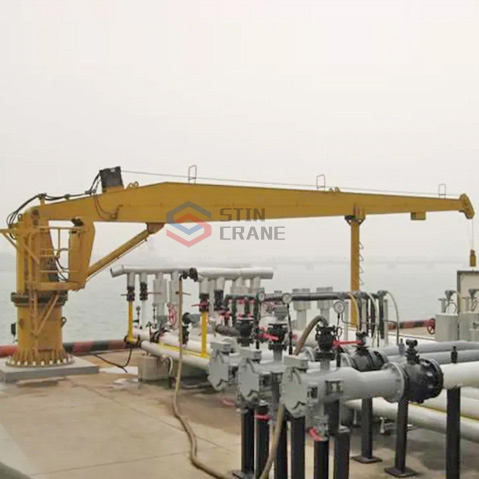

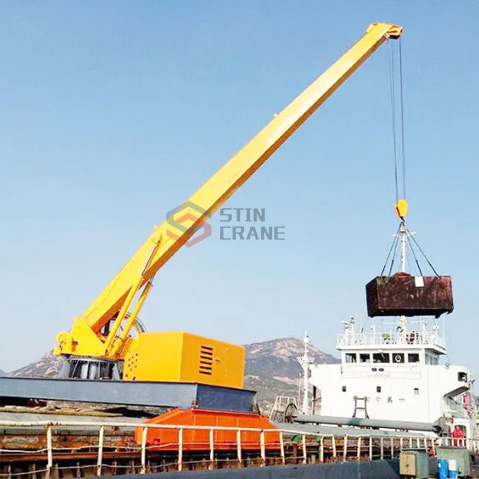

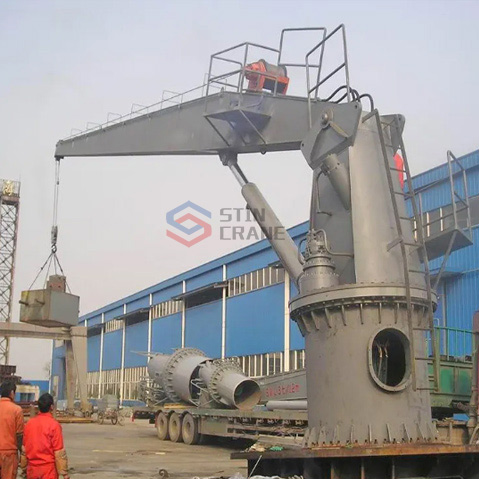

Hydraulic Crane Truck Lorry Small Marine Boat 10 ton Portable Deck Crane

Detailed description

Knuckle boom crane is a kind of special purpose crane to carry out transportation operations in the maritime environment. They are mainly used for the transportation of goods between ships, the supply of sea, the delivery and recycling of object during underwater operations.


The hydraulic system of deck crane innovatively adopts a closed system instead of the open system, solving the problem of the lifting brake control, which is rare to see for deck cranes. After successfully applying the closed system of the deck crane, the hydraulic oil consumption has been reduced by more than half compared to the open system deck cranes, and the power consumption has also been greatly reduced. This is a major breakthrough in energy saving and environmental protection. This crane has obtain 6 national patents. Deck crane is designed for such condition and can be customized as per our clients' variable working requirements.


Features:

1. Built-in machine, electric, hydraulic, integrated system.

2. Fully hydraulic drive.

3. Self-diagnosis wave compensation system.

4. Luffing load horizontal movement technology.

5. Eight safety devices including torque limiter, etc.

6. Visible safety monitoring system.


Rated Capacity
t
5
10
20
30
50
70
Beam Length
mm
2000~6000





Lifting Height
mm
2000~6000





Lifting Speed
m/min
8; 8/0.8





Travelling Speed
m/min
10; 20





Turning Speed
r/min
0.76
0.69
0.6
0.53
0.48
0.46
Turning Degree
degree
360°





Duty Class
A3






Power Source
380V, 50HZ, 3 phase (or other standard)






Working Temperature
-20~42°C






Control Model
Pendant push button control or remote control






    If you need to source such new or used cranes, please feel free to ask us any question related.
